Product details
Key features
During the day, solar panels often generate more energy than you use straight away. Some of this is fed back into the grid, whilst you draw power from it again in the evening. With the SolarVault 3 Pro Max AC home battery, you can store this surplus and use it later in your home. This allows you to increase your own consumption of solar energy and get more out of your solar panels.

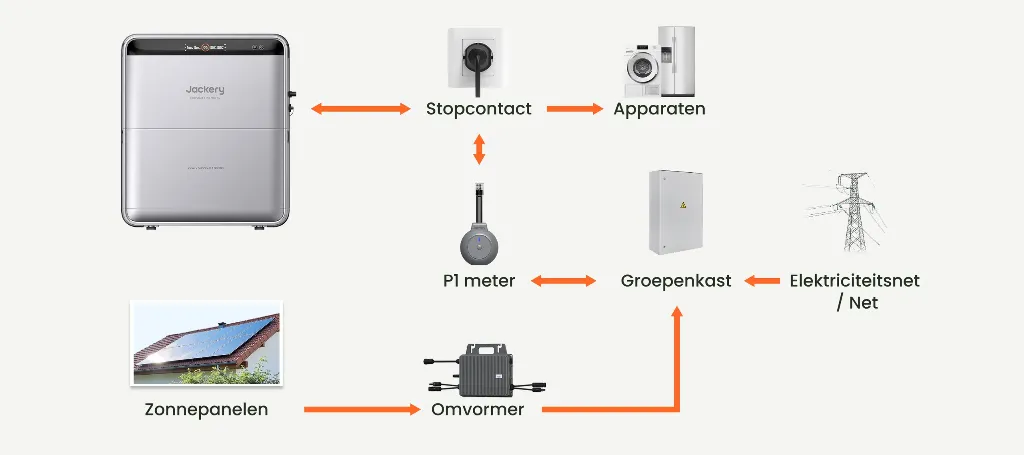

This makes the system a practical home battery solution for households looking to expand their existing solar panel setup with energy storage. The SolarVault 3 Pro Max AC has been specially developed for homes with an existing PV system. Thanks to its AC-connected operation, the system is connected to the AC side of the home and works in conjunction with your current inverter or micro-inverters.
This means that solar panels do not need to be reconnected and no additional PV cabling is required. When used with a compatible energy meter, surplus solar energy is automatically stored and used later when energy consumption in the home increases.
2500W bidirectional AC power
The SolarVault 3 MaPro x AC offers 2500W bidirectional AC power per unit. This means that the system can not only charge, but also continuously supply up to 2500W to your home.
In practice, this is sufficient to power several household appliances simultaneously. Think of lighting, a fridge, a freezer and the internet, whilst a washing machine or dishwasher is running at the same time. The system therefore takes over a substantial portion of daily electricity consumption.
Please note, however, that the battery must be connected to a separate circuit in order to utilise the full AC output power of 2500W safely and in accordance with regulations. If the battery is connected to a shared circuit, you may feed a maximum of 800W into the domestic grid. A shared circuit is a circuit to which other appliances are also connected.

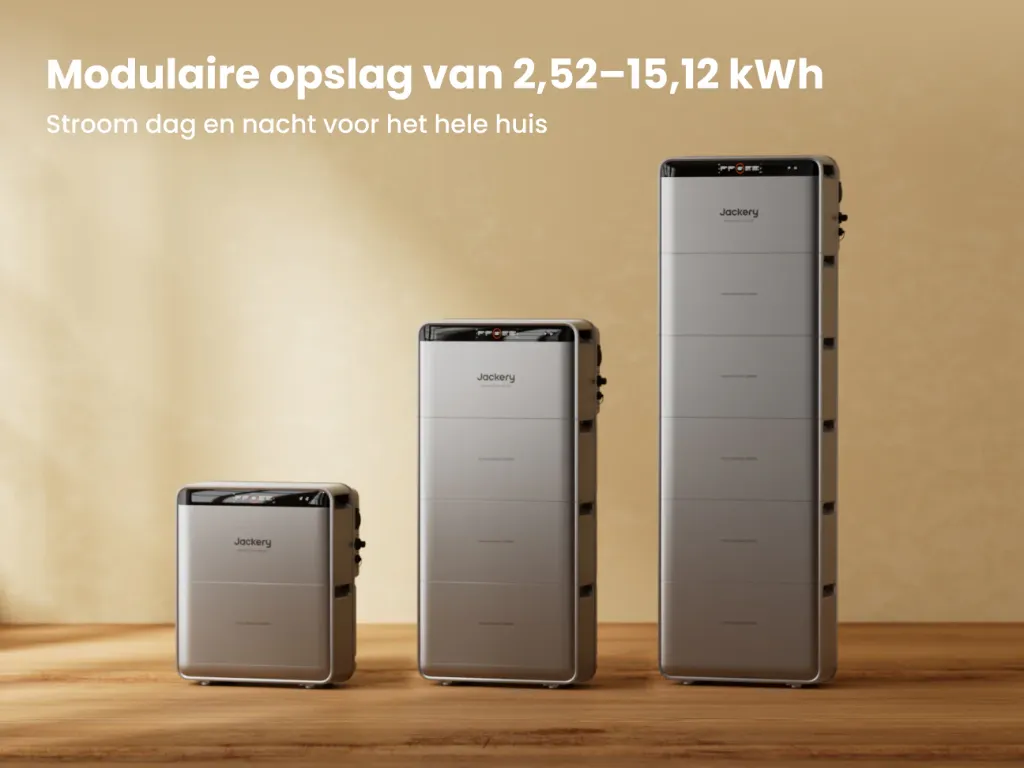

Storage capacity

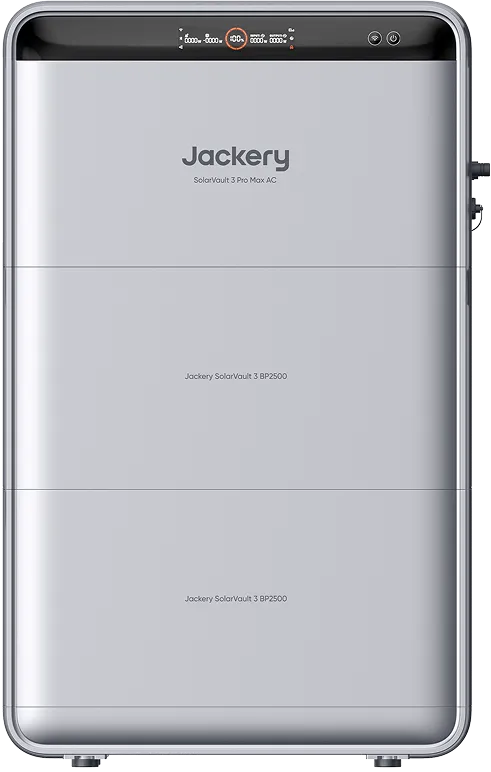

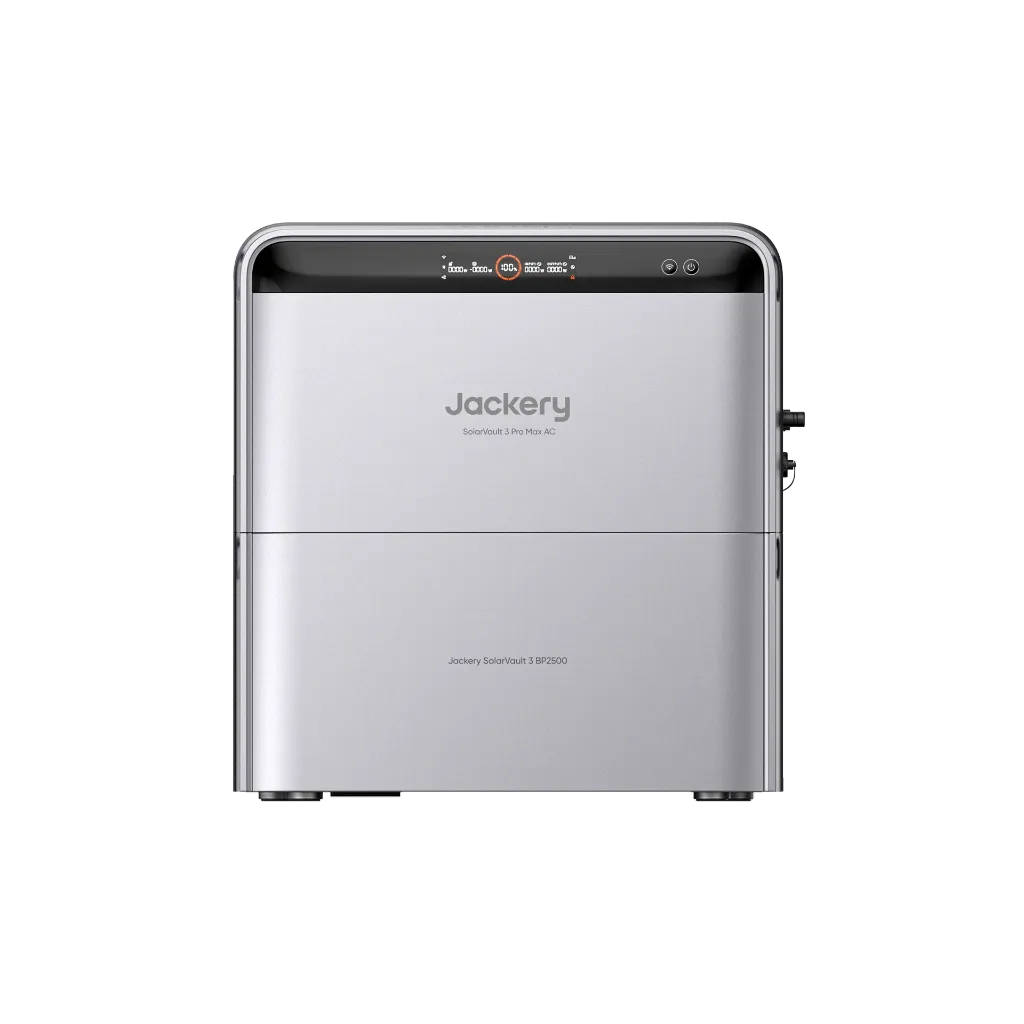

The integrated storage capacity is 7,56kWh per unit and can be expanded with up to five BP2500 battery modules per tower. This increases the capacity to 15.12 kWh per tower.
For larger installations, up to three 15.12kWh/2500W units can be connected in parallel. Together, they provide 45.36kWh of storage capacity and up to 7500W of AC power, making the system suitable for homes with a higher simultaneous load (heat pump, electric car charging, etc.).

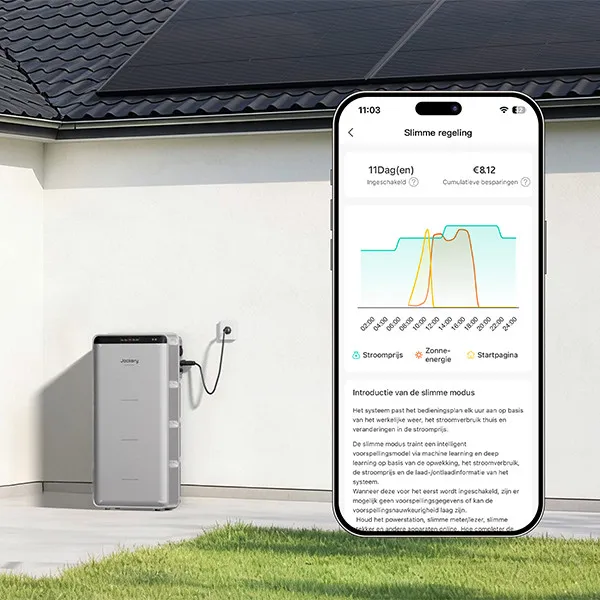

Energy management & dynamic tariffs

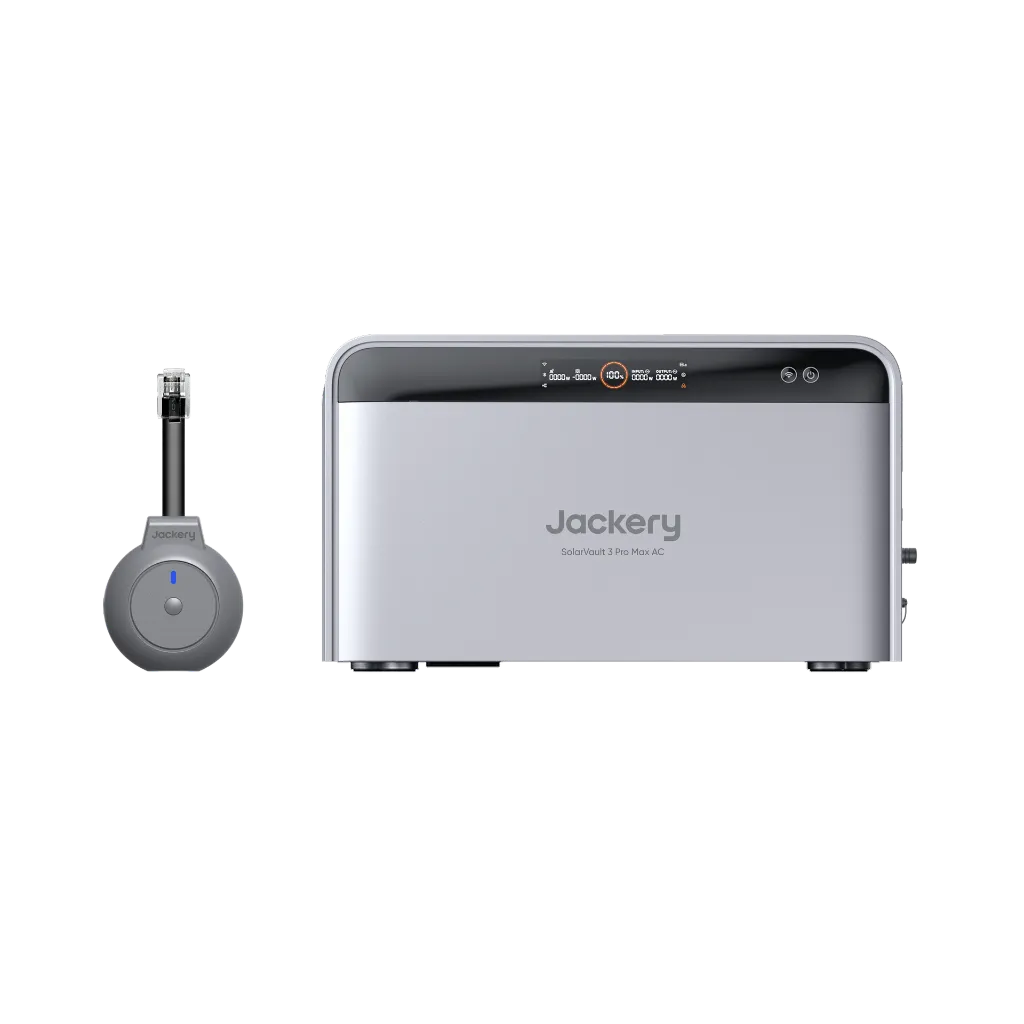

When used in conjunction with a smart meter, the system provides real-time insight into consumption and feed-in. It supports various operating modes, including self-consumption and dynamic tariff control.
With dynamic energy tariffs, the system can automatically charge when electricity is cheaper and discharge when tariffs rise. Control and monitoring are carried out via Bluetooth, Wi-Fi or Ethernet in the Jackery app.

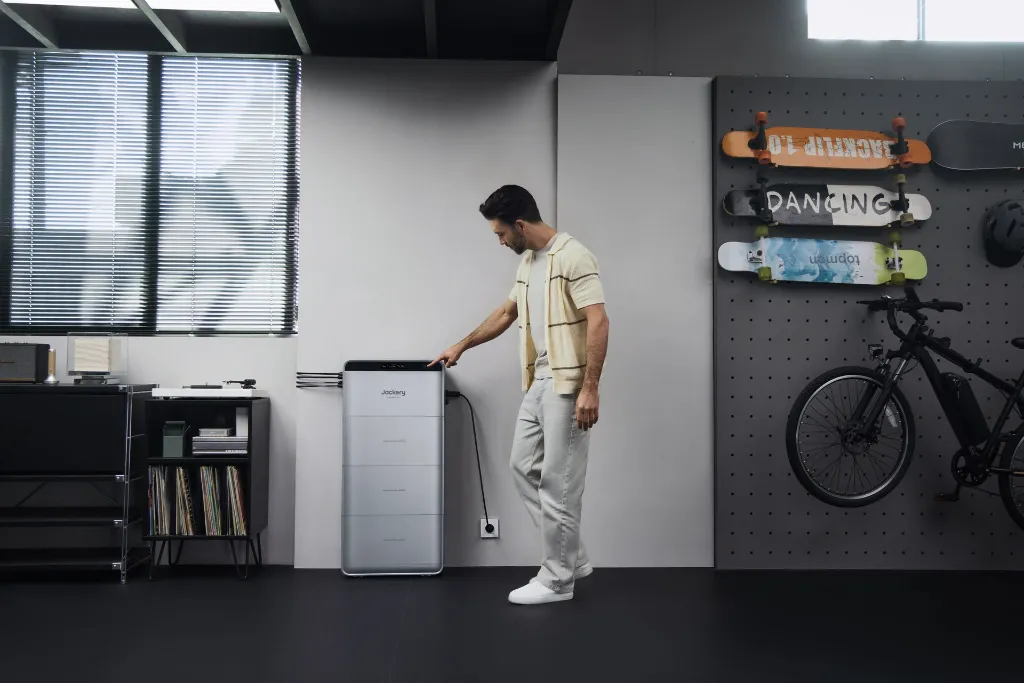

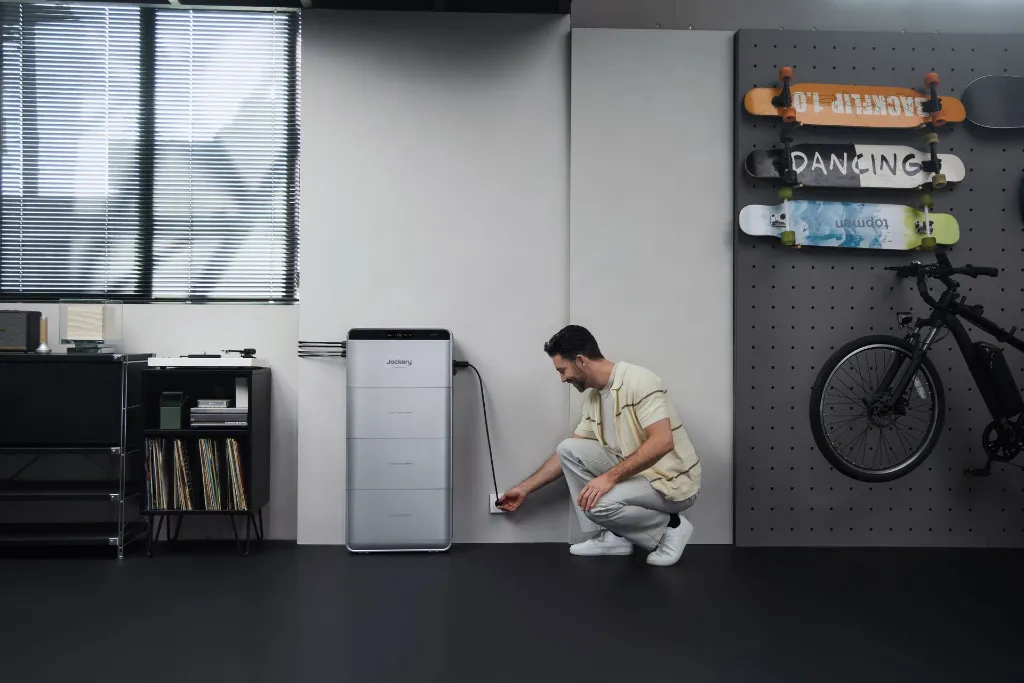

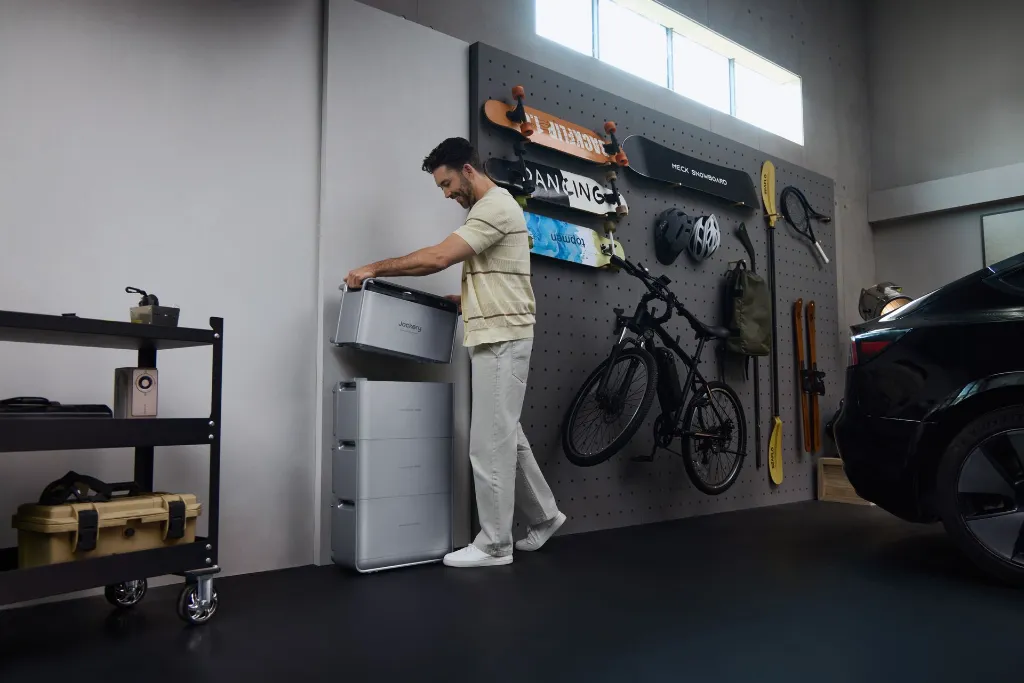

10 minutes plug and play installation
No professional needed. Thanks to the compact, space-saving design and a weight of just 25.5±0.5 kg, it can be easily installed by one person. Plug it into the socket, connect the smart meter and link with the app – done, it's that simple.
Extensive built-in safety mechanisms
From electrical safety to environmental resilience: the SolarVault 3 Pro Max AC is equipped with over 100 layers of protection and tested in more than 1,000 reliability scenarios – ensuring reliable performance throughout its entire lifespan.
With a built-in aerosol module, the SolarVault 3 Pro Max AC detects abnormal internal temperatures and alerts you immediately. If the temperature continues to rise to a critical threshold, the system automatically releases aerosol to prevent risks from spreading – giving your home an invisible layer of safety.
IP65 water and dust resistant
Thanks to its IP65 rating, the device is fully dust-tight and protected against water jets, making it ideal for year-round outdoor use.
10-year warranty & 15-year lifespan
Enjoy long-term peace of mind with a 10-year warranty and a designed lifespan of 15 years, ensuring your system remains reliable for years to come.
For who?
The SolarVault 3 Pro Max AC is a logical next step for households looking to expand their existing solar installation with their own energy storage. Instead of feeding generated energy back directly, it remains available within the home and is used when consumption requires it.
This is how your solar panel installation grows from just generation to an active energy system. You make better use of your own electricity, support higher simultaneous loads, and maintain control over how and when energy is used.
📦 Free pickup at the Sustix warehouse in Kortrijk
🚚 Free delivery in Belgium within +/- 7 days
✅ Price includes Bebat contribution, in line with Belgian regulations.
